A mesh network is the best solution for providing reliable wireless service to public safety vehicles. In a mesh network, each node (vehicle) can connect to multiple other nodes, providing multiple paths for data to travel. This enhances reliability and redundancy, ensuring continuous connectivity even if one or more nodes fail. Mesh networks are highly resilient and are well-suited for dynamic and mobile environments such as public safety operations.References: CompTIA Network+ study materials.

Definition of Jumbo Frames:

Jumbo frames are Ethernet frames with more than 1500 bytes of payload, typically up to 9000 bytes. They are used to improve network performance by reducing the overhead caused by smaller frames.

Why Switches Support Jumbo Frames:

Switches are network devices designed to manage data packets and can be configured to support jumbo frames. This capability enhances throughput and efficiency, particularly in high-performance networks and data centers.

Incompatibility of Other Devices:

Access Point: Primarily handles wireless communications and does not typically support jumbo frames.

Bridge: Connects different network segments but usually operates at standard Ethernet frame sizes.

Hub: A simple network device that transmits packets to all ports without distinguishing between devices, incapable of handling jumbo frames.

Practical Application:

Enabling jumbo frames on switches helps in environments where large data transfers are common, such as in storage area networks (SANs) or large-scale virtualized environments.

References:

CompTIA Network+ course materials and networking hardware documentation.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

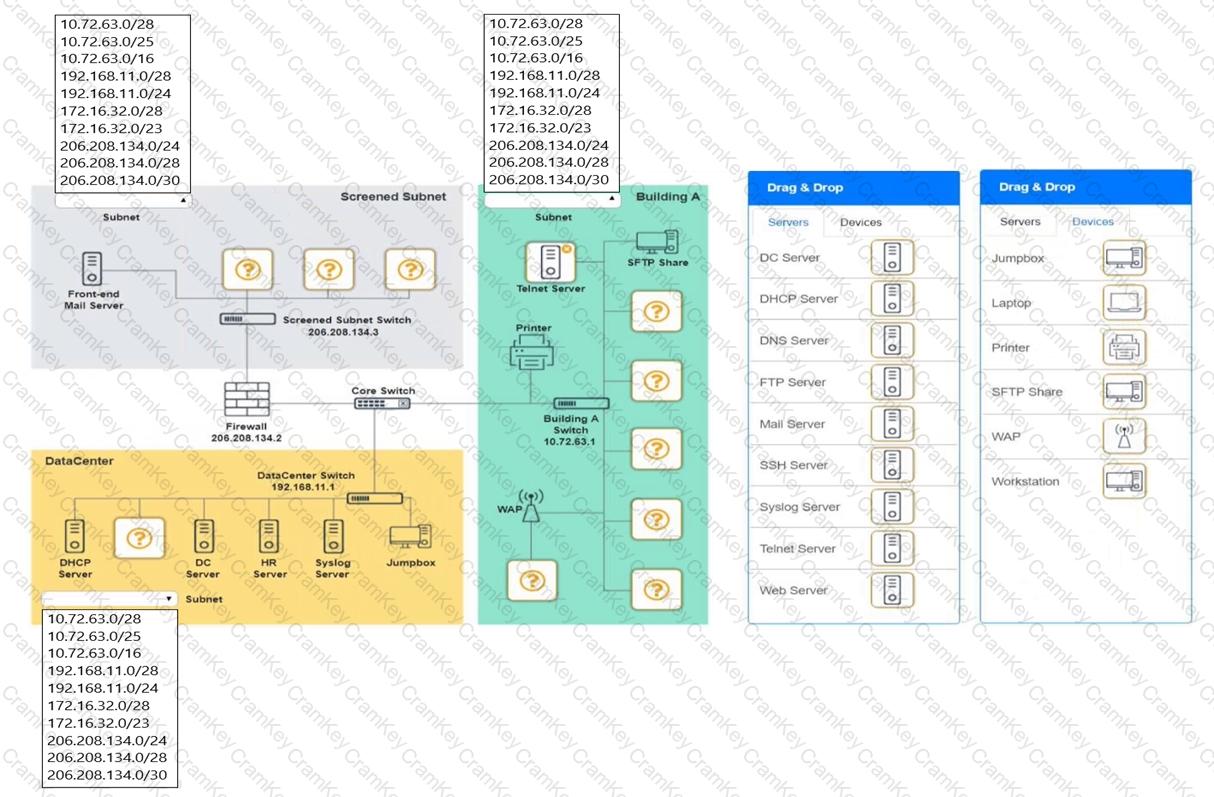

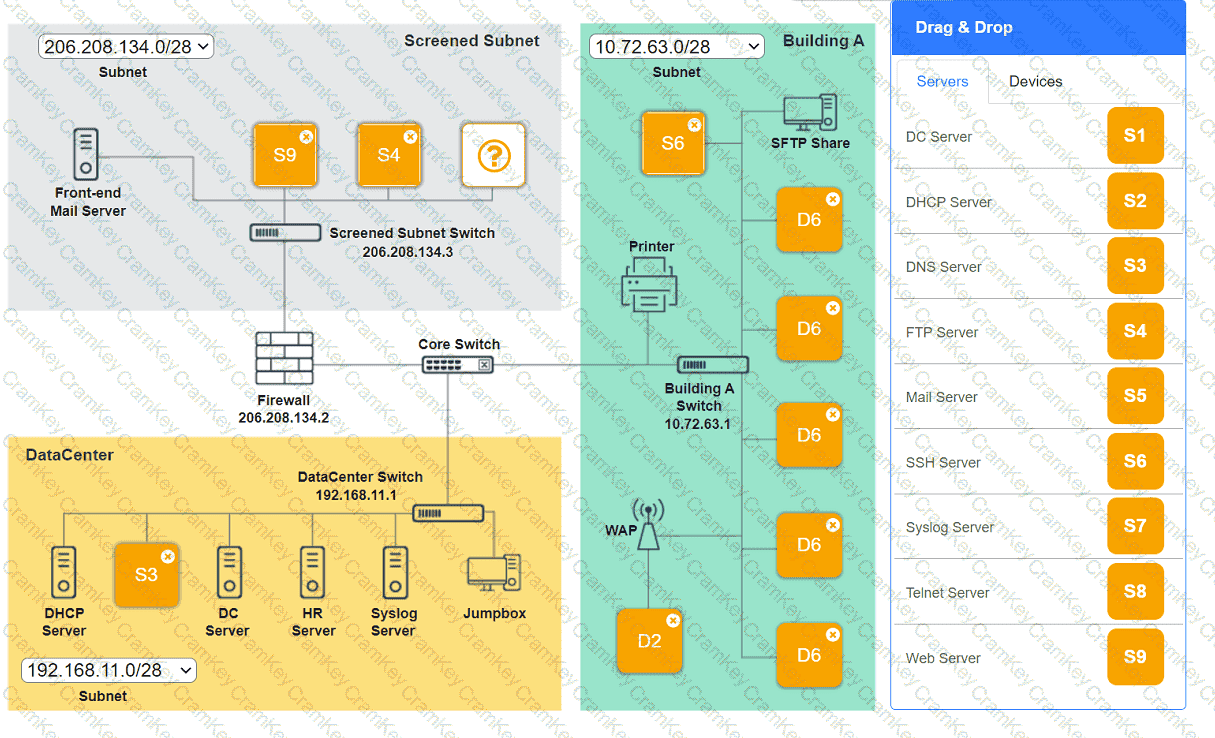

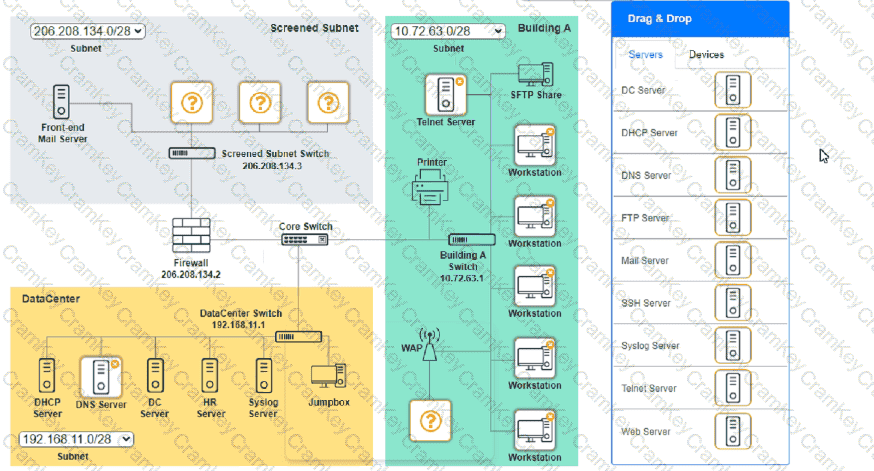

To troubleshoot all the network components and review the cable test results, you can use the following steps:

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

To enter commands in each device, you can use the following steps:

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

The three-tier hierarchical model in network design consists of three layers: access, distribution, and core. The access layer is where devices like PCs and printers connect to the network. The distribution layer aggregates the data received from the access layer switches before it is transmitted to the core layer, which is responsible for high-speed data transfer and routing. This approach improves scalability and performance in larger networks. References: CompTIA Network+ Exam Objectives and official study guides.
