Understanding Switches:

Layer 2 (Data Link Layer): Traditional switches operate primarily at Layer 2, where they use MAC addresses to forward frames within a local network.

Layer 3 (Network Layer): Layer 3 switches, also known as multilayer switches, can perform routing functions using IP addresses to forward packets between different networks.

Capabilities of Multilayer Switches:

VLANs and Inter-VLAN Routing: Multilayer switches can handle VLAN (Virtual Local Area Network) configurations and perform inter-VLAN routing, enabling communication between different VLANs.

Routing Protocols: They can run routing protocols like OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol) to manage traffic between networks.

Comparison with Other Devices:

Hub: Operates only at Layer 1 (Physical Layer) and simply repeats incoming signals to all ports.

Transceiver: Also operates at Layer 1, converting electrical signals to optical signals and vice versa.

Modem: Primarily operates at Layer 1 and Layer 2, modulating and demodulating signals for transmission over different types of media.

Practical Application:

Multilayer switches are commonly used in enterprise networks to optimize performance and manage complex routing and switching requirements within a single device.

References:

CompTIA Network+ study materials on network devices and the OSI model.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

SNMPv3 (Simple Network Management Protocol version 3) provides device monitoring with authentication and encryption. This enhances network visibility and security by ensuring that monitoring data is securely transmitted and access to network devices is authenticated.

Authentication: SNMPv3 includes robust mechanisms for authenticating users accessing network devices.

Encryption: It provides encryption to protect the integrity and confidentiality of the data being transmitted.

Network Management: SNMPv3 allows for detailed monitoring and management of network devices, ensuring better control and security.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers SNMP versions, their features, and security enhancements in SNMPv3.

Cisco Networking Academy: Provides training on implementing and securing SNMP for network management.

Network+ Certification All-in-One Exam Guide: Explains the benefits and security features of SNMPv3 for network monitoring.

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

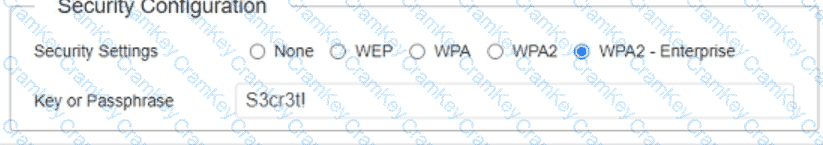

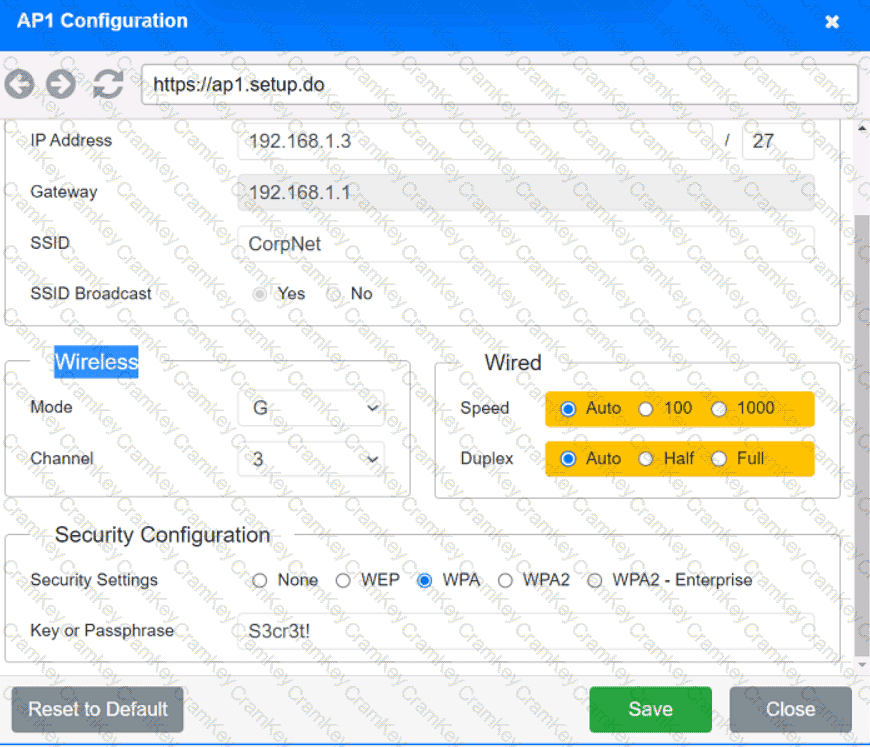

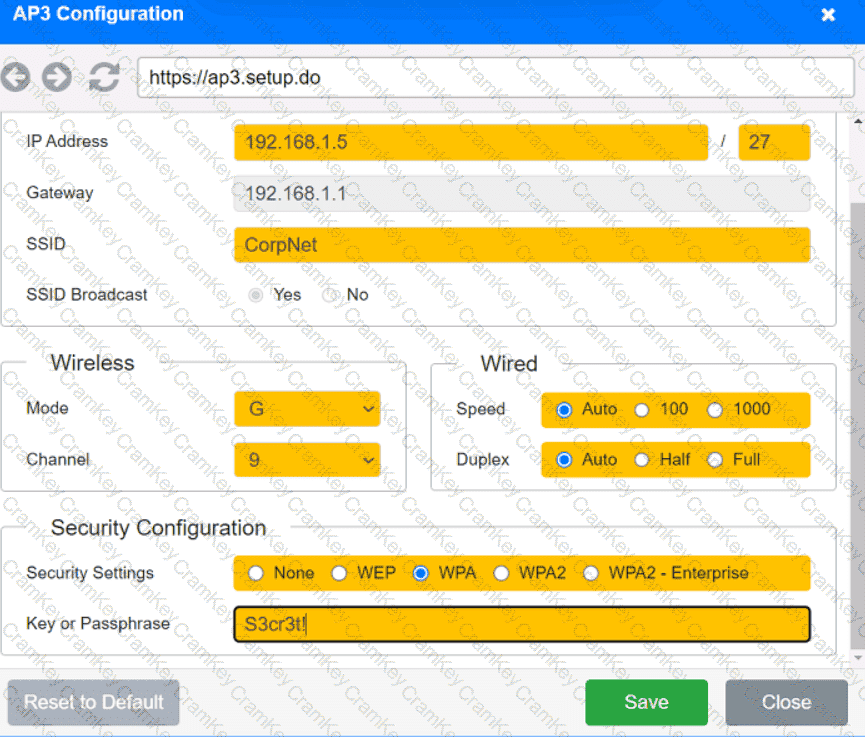

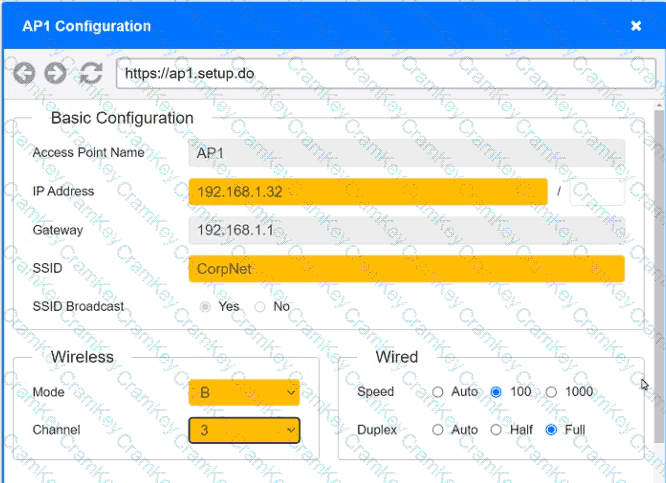

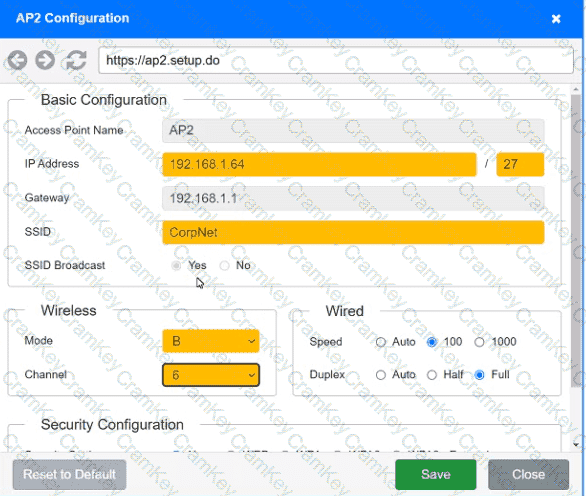

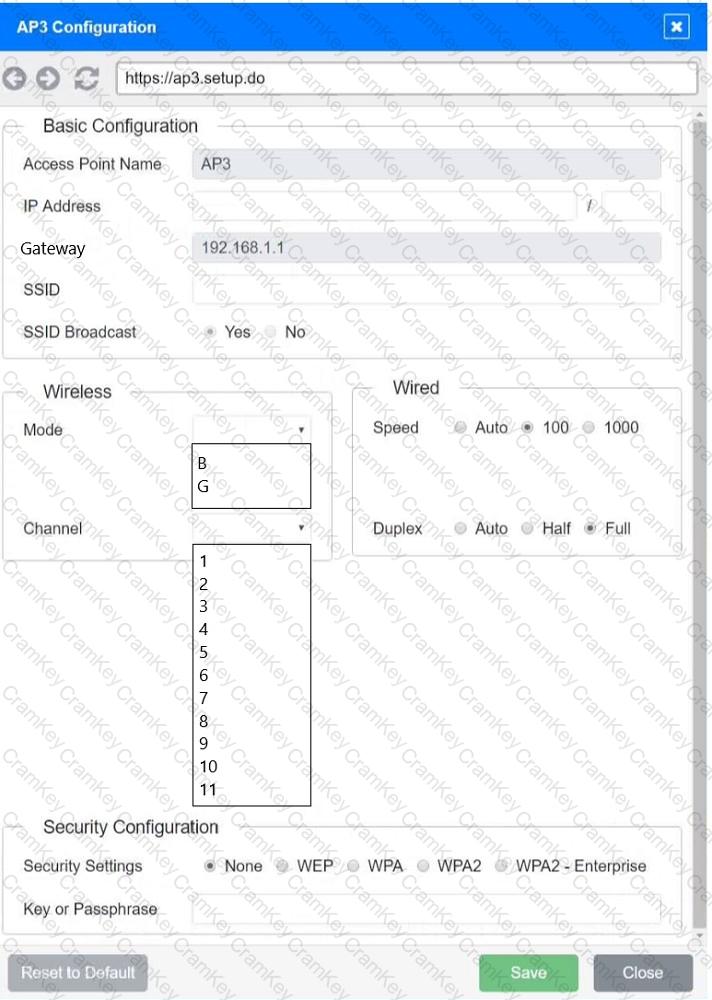

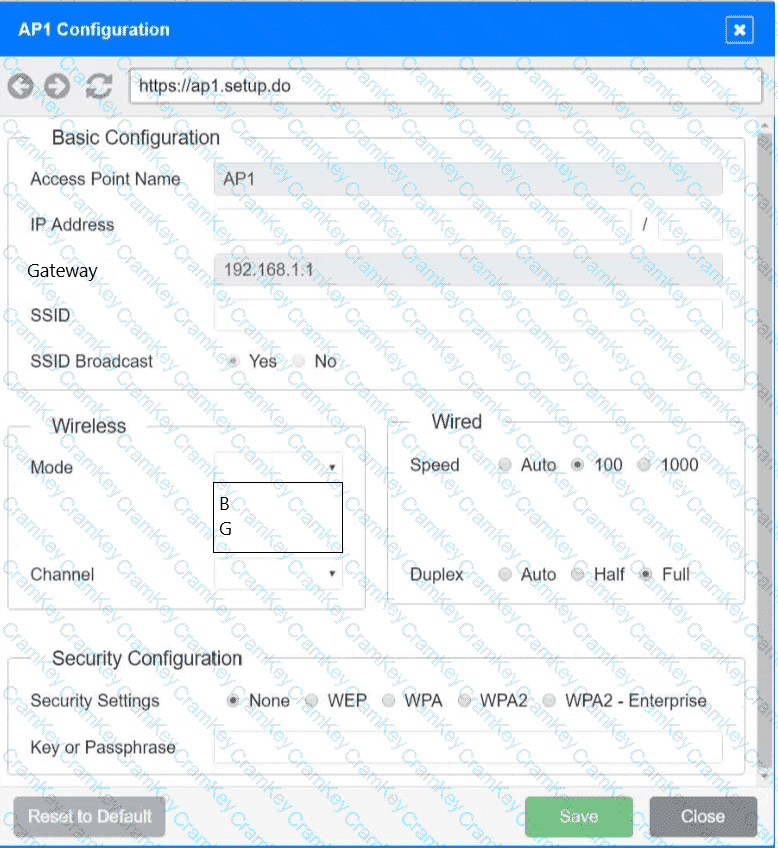

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to "CORP" as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the "Save" button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.
