Question 8

Choose the correct answer.

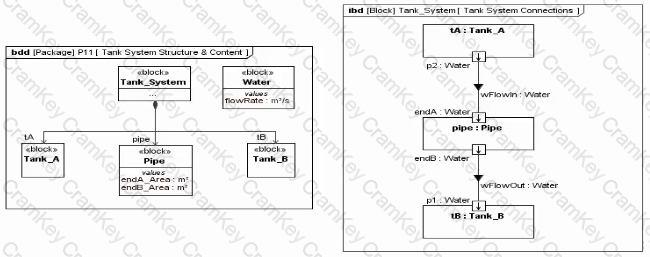

A system engineer has created the following model of a tank system composed of two tanks and a pipe connecting them:

Questions 8

The system engineer wants to mathematically relate the flow of water through the pipe using the following mass conservation equation: Tank_System wFlowin flowRate * Tank_System pipe endA_Area = Tank_System wFlowOut flowRate * Tank_System pipe endB_Area How would the system engineer model this in SysML?

Options:

Create a block to represent the mass conservation equation, use it in Tank_System. and relate its properties to the properties of wFlowin. wFlowOut. and pipe

Create a constraint block to represent the mass conservation equation, use it in Tank_System. and relate its parameters to the properties of wFiowin. wFlowOut. and pipe

Create a constraint block to represent each of wFlowin wFlowOut and the mass conservation equation; use these constraint blocks In Tank_System. and relate their parameters to the properties of pipe.

Create two flow properties for Tank_System (equivalent to wFlowin and wFlowOut); create a constraint block for the mass conservation equation and use it in Tank_System. and then relate the flow properties to the new constraint property.

It is not possible to model this because wFlowin and wFlowOut are item properties and not flow properties

Discussion

Question 9

Choose the correct answer.

Where can a StateInvariant appear?

Options:

on a lifeline in a sd

on a transition in a stm

on an object node In an act

in the s rates compartment of a block on a bdd

Discussion

Esmae

I highly recommend Cramkey Dumps to anyone preparing for the certification exam.

Mollie Aug 15, 2024

Absolutely. They really make it easier to study and retain all the important information. I'm so glad I found Cramkey Dumps.

Wyatt

Passed my exam… Thank you so much for your excellent Exam Dumps.

Arjun Sep 18, 2024

That sounds really useful. I'll definitely check it out.

Ernest

That's amazing. I think I'm going to give Cramkey Dumps a try for my next exam. Thanks for telling me about them! CramKey admin please share more questions……You guys are amazing.

Nate Sep 15, 2024

I failed last week, I never know this site , but amazed to see all these questions were in my exam week before. I feel bad now, why I didn’t bother this site. Thanks Cramkey, Excellent Job.

Carson

Yeah, definitely. I would definitely recommend Cramkey Dumps to anyone who is preparing for an exam.

Rufus Aug 20, 2024

Me too. They're a lifesaver!

Question 10

Choose the correct answer.

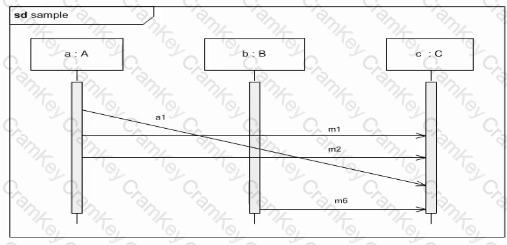

Given the following diagram:
