The provided image depicts a state machine fragment containing an invalid transition. The state machine has a single state labeled "S1" with an incoming and outgoing transition labeled "e".

According to the UML 2 Foundation documents, a transition in a state machine cannot originate from and target the same state. This type of loopback transition within a single state is not permitted.

Here's a breakdown of why other options are incorrect:

• Option A (A transition requires a trigger or guard) is not necessarily true. Transitions can exist without explicit triggers or guards, although their presence is often recommended for clarity and modeling complex behavior.
• Option B (A guard condition is not allowed on the initial transition) is valid. Guard conditions are indeed not allowed on the initial transition of a state machine, but the issue in the diagram is the loopback, not the presence or absence of a guard.
• Option C (A trigger is not allowed on the transition to the final state) is not always true. Final states can have outgoing transitions with triggers under specific circumstances (e.g., for hierarchical state machines). However, the error here concerns the loopback nature of the transition.

References:

• UML Specification (Superstructure) Version 2.5.1, specifically sections covering state transitions (Section 14.2.3.7). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1

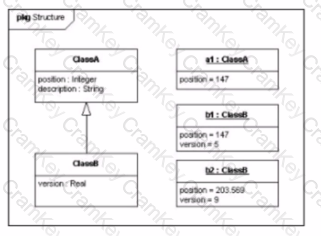

In the UML diagram given, we see two classes,ClassAandClassB, withClassBinheriting fromClassA.ClassAhas two attributes,positionof typeIntegeranddescriptionof typeString.ClassBintroduces an additional attribute,versionof typeReal.

Looking at the instance specifications (the right part of the diagram), we have three instances:a1of typeClassA,b1of typeClassB, andb2also of typeClassB.

In UML, an instance specification must comply with the structure of its classifier, which means an instance ofClassAmust show slots for bothpositionanddescription, whereas an instance ofClassBmust show slots forposition,description, andversion.

In the provided diagram, instancea1ofClassAonly shows a slot forposition. This is an error because it does not show a slot fordescription, which is a defined attribute ofClassA. To correct this error, we would need to add adescriptionslot toa1.

This means that the correct answer is:

B. Add a description slot to a1.

The other options do not correct the error in the model:

A) Specifying unique values forpositiondoes not address the missingdescriptionslot ina1. C) Changing the type ofClassB.versionfromRealtoIntegeris not required by any UML constraint in the context given. D) Changing the type ofClassA.positionfromIntegertoRealdoes not address the missingdescriptionslot ina1and is unrelated to the inheritance structure.

A domain model's defining characteristic is that it captures the main domain concepts and their relationships. This model focuses on representing the key elements within the problem domain, outlining how these elements interact with each other without detailing the specific implementations. The domain model is an essential tool in software development for understanding and communicating the fundamental structure of the system from a problem domain perspective, helping teams to design solutions that are well-aligned with actual domain needs. UML is often used to represent domain models due to its capability to visually and clearly model complex relationships and structures.

In the second diagram provided, we see four messages: 'x', 'y', 'z', and 'p'. The vertical positioning of these messages indicates their order in time.

Option A states that "Sending message x is the first occurrence that happens." This could be true but is not necessarily always true, as there could be other messages or interactions before 'x' that are not shown in this part of the diagram.

Option B states that "Sending message z will happen after receiving message x." This is always true because the lifeline for 'v2[C]' shows the reception of 'x' before sending 'z'. In sequence diagrams, the vertical position indicates the sequence of events, and 'z' is clearly below 'x' on the 'v2[C]' lifeline.

Option C, "Sending message y will happen before sending message z," is not necessarily true because the messages 'y' and 'z' are sent by different lifelines, and there is no explicit ordering between them.

Option D, "Sending message p will happen before receiving message y," is not necessarily true as 'p' and 'y' involve different lifelines, and no ordering is specified between these interactions.

Therefore, the correct answer is:

B. Sending message z will happen after receiving message x.
