In the provided configuration, IS-IS is enabled on Loopback0 but not on Loopback3 of R2. As a result, R2 will advertise the route 10.0.2.2/32 (from Loopback0) to R1 through IS-IS. However, the route 10.0.2.3/32 will not be advertised because IS-IS is not enabled on that loopback interface. The import-route direct command does not override this behavior ​.

Comprehensive and Detailed in-depth Step-by-Step Explanation:In OSPF, Link State Advertisements (LSAs) are used to exchange routing and topology information. Each LSA in the OSPF network is uniquely identified using a 3-tuple identifier, which consists of:

Link State ID:

The Link State ID uniquely identifies the LSA within the OSPF area. Its value depends on the LSA type. For example, for a Router LSA, the Link State ID is the originating router’s Router ID.

Advertising Router:

This is the Router ID of the router that generated the LSA. It identifies which router is responsible for creating and advertising this LSA.

LSType:

This field identifies the type of LSA (e.g., Router LSA, Network LSA, Summary LSA, AS-External LSA, etc.). It is crucial for interpreting the purpose and content of the LSA.

The LS Sequence Number is not part of the 3-tuple that uniquely identifies the LSA. Instead, it is used to determine the most recent version of the LSA in case there are multiple instances of the same LSA.

References:

Huawei HCIA-Datacom Study Guide, Chapter on "OSPF LSAs and LSDBs".

RFC 2328 – OSPF Version 2 (Section 12.1.6).

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Three-Way Handshake:

IS-IS uses a three-way handshake to establish neighbor relationships.

This process is applied on both point-to-point (P2P) and broadcast network types to confirm bidirectional communication.

P2P Networks:

Routers directly exchange IS-IS Hello (IIH) packets to establish adjacency.

Broadcast Networks:

IS-IS also uses the three-way handshake on broadcast networks to ensure that the Designated Intermediate System (DIS) election and adjacency formation are correct.

References:

HCIA-Datacom Study Guide, Chapter: IS-IS Adjacency Establishment

Huawei IS-IS Network Configuration

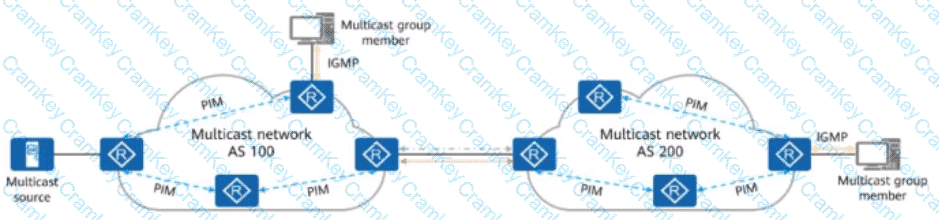

By default, a router interface sends PIM (Protocol Independent Multicast) Hello messages every 30 seconds to maintain neighbor relationships. This interval can be adjusted using configuration commands ​.
