Google Updated Professional-Cloud-Security-Engineer Exam Questions and Answers by arwen

The problem requires exposing a sensitive AI model endpoint internally (strictly isolated from the internet) to a defined list of projects within the organization.

Internal Exposure and Isolation: An "internal Application Load Balancer" is suitable for exposing services within your VPC network, ensuring they are not accessible from the internet.

Private Service Connect (PSC): This is the key technology for securely and privately exposing services from one VPC network (the service producer, where the model is) to other VPC networks (the service consumers, the defined list of projects) within the same or different organizations. PSC allows consumers to access services using internal IP addresses, with traffic remaining on Google's private network. You can configure a service attachment that points to the internal load balancer, and then permit specific consumer projects to connect to this service attachment.Extract Reference: "Private Service Connect is a capability of Google Cloud networking that allows consumers to access managed services privately from inside their VPC network. Similarly, it allows managed service producers to host these services in their own separate VPC networks and offer a private connection to their consumers." (Google Cloud Documentation: "Private Service Connect | VPC" - https://cloud.google.com/vpc/docs/private-service-connect)

Extract Reference: "Private Service Connect endpoints are internal IP addresses in a consumer VPC network that can be directly accessed by clients in that network. Endpoints are created by deploying a forwarding rule that references a service attachment or a bundle of Google APIs." (Google Cloud Documentation: "About Private Service Connect | VPC" - https://cloud.google.com/vpc/docs/private-service-connect)

Extract Reference: "Private Service Connect can be used to access managed services that are owned by Google, third-party software as a service (SaaS) companies, or other teams within the consumer's own company. Both published services and Google APIs can be targets of Private Service Connect." (Google Cloud Documentation: "About Private Service Connect | VPC" - https://cloud.google.com/vpc/docs/private-service-connect)

Let's evaluate the other options:

A. Shared VPC and central firewall rules: While Shared VPC centralizes network management, it does not provide a direct managed service exposure mechanism like PSC for a model endpoint to specific projects. It's more about sharing subnets and network resources. Administering all firewall rules centrally would also not meet the need for exposing only this specific model to a defined list of projects in a managed, private service pattern.

B. Activate Private Google Access (PGA): Private Google Access allows VMs without external IP addresses to access Google APIs and services (like Cloud Storage, BigQuery, etc.) privately from within their VPC network. It's for consuming Google services, not for exposing custom services hosted in a Google Cloud project to other projects.

D. External Application Load Balancer + Cloud Armor: An "external Application Load Balancer" exposes the service to the internet. While Cloud Armor can restrict access based on IP addresses, it still involves internet exposure, which contradicts the "strictly isolated from the internet" requirement. Restricting to "Google Cloud IP addresses" doesn't guarantee access only to a defined list of projects and still exposes the service externally.

Therefore, creating an internal Application Load Balancer and exposing it via Private Service Connect is the most suitable and secure solution for this scenario.

Objective: Ensure only front-end Compute Engine instances have public IPs, while others do not.

Solution: Use an organization policy to enforce this requirement.

Steps:

Step 1: Open the Google Cloud Console.

Step 2: Navigate to the Organization Policies page.

Step 3: Create a new policy with the constraint constraints/compute.requireOsLogin (or similar constraint to manage public IPs).

Step 4: Define the conditions to allow public IPs only for the front-end instances.

Step 5: Apply the policy to the organization or specific projects as necessary.

By setting up an organization policy with specific conditions, you can control which instances are allowed to have public IPs based on their role or other attributes.

Understanding Organization Policies:

Organization policies are rules that can be set at different levels of the resource hierarchy in GCP to enforce governance and compliance.

These policies can be set at the organization node, folders, and projects, and they are inherited down the hierarchy unless explicitly overridden.

Hierarchy and Policy Inheritance:

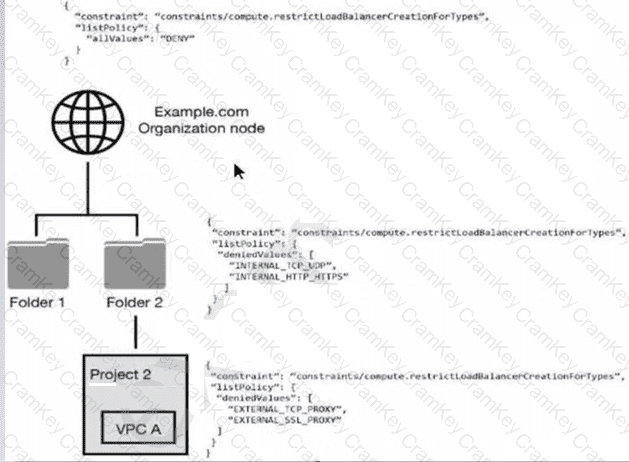

The provided resource hierarchy has an organization node (Example.com), folders (Folder 1 and Folder 2), and a project (Project 2) under Folder 2 with a specific VPC (VPC A).

Each node in the hierarchy can have its own policies, and these policies are inherited by child nodes unless overridden.

Analyzing the Policies in the Hierarchy:

Organization Node Policy:

json

Copy code

{ "constraint": "constraints/compute.restrictLoadBalancerCreationForTypes", "listPolicy": { "allValues": "DENY" } }

This policy at the organization node denies all load balancer types.

Folder 2 Policy:

json

Copy code

{ "constraint": "constraints/compute.restrictLoadBalancerCreationForTypes", "listPolicy": { "deniedValues": ["INTERNAL_TCP_UDP", "INTERNAL_HTTP_HTTPS"] } }

This policy at Folder 2 denies the creation of INTERNAL_TCP_UDP and INTERNAL_HTTP_HTTPS load balancers.

Project 2 Policy:

json

Copy code

{ "constraint": "constraints/compute.restrictLoadBalancerCreationForTypes", "listPolicy": { "deniedValues": ["EXTERNAL_TCP_PROXY", "EXTERNAL_SSL_PROXY"] } }

This policy at Project 2 denies the creation of EXTERNAL_TCP_PROXY and EXTERNAL_SSL_PROXY load balancers.

Policy Application to VPC A:

Since policies are inherited, VPC A (which is within Project 2 under Folder 2) will be affected by the policies of both Folder 2 and Project 2.

Combining the denied values from both Folder 2 and Project 2:

From Folder 2: INTERNAL_TCP_UDP, INTERNAL_HTTP_HTTPS

From Project 2: EXTERNAL_TCP_PROXY, EXTERNAL_SSL_PROXY

Conclusion:

VPC A will have the following load balancer types denied: INTERNAL_TCP_UDP, INTERNAL_HTTP_HTTPS, EXTERNAL_TCP_PROXY, EXTERNAL_SSL_PROXY.

Challenge:

Ensuring secure access to Google Cloud resources from GitHub Actions CI/CD pipelines without directly managing service account keys.

Workload Identity Federation:

Allows for the delegation of access to Google Cloud resources based on federated identities, such as those from GitHub.

Benefits:

This approach eliminates the need to manage service account keys, reducing the risk of key leakage.

It leverages GitHub's identity provider capabilities to authenticate and authorize access.

Steps to Configure Workload Identity Federation:

Step 1: Create a workload identity pool in Google Cloud.

Step 2: Add GitHub as an identity provider within the pool.

Step 3: Configure the necessary permissions and bindings for the identity pool to allow GitHub Actions to access Google Cloud resources.

Step 4: Update the GitHub Actions workflow to use the identity federation for authentication.
