• A speed mismatch occurs when the cluster ports on different nodes have different speeds, such as 10 Gbps and 40 Gbps1.
• A speed mismatch can cause packet loss, retransmits, and latency on the cluster network, especially when data is accessed indirectly, meaning that the node serving the data is different from the node hosting the LIF2.
• In this scenario, the AFF A300 nodes have 10 Gbps cluster ports, while the AFF A700 nodes have 40 Gbps cluster ports, creating a speed mismatch on the cluster interconnect34.
• The Cisco Nexus 3132Q cluster interconnect switches support both 10 Gbps and 40 Gbps cluster ports, but they have a shallow buffer size of 9 MB per port, which can be easily overwhelmed by the bursty traffic generated by the speed mismatch.
• To solve this problem, you need to either upgrade the cluster ports on the AFF A300 nodes to 40 Gbps, or downgrade the cluster ports on the AFF A700 nodes to 10 Gbps, to achieve a homogeneous cluster interconnect1.
• Alternatively, you can use QoS policies to limit the bandwidth of the cluster ports to avoid oversubscription and congestion on the cluster interconnect. References:
• 1: Cluster network cabling, ONTAP 9 Documentation Center
• 2: Cluster Network Latency - Troubleshooting Guide, NetApp Knowledge Base
• 3: AFF A300 Tech Specs, NetApp
• 4: AFF A700 Tech Specs, NetApp
• [5]: Why do network speed mismatches create problems with shallow buffered switches?, NetApp Knowledge Base
• [6]: How to use QoS to limit the bandwidth of cluster ports, NetApp Knowledge Base

Data. However, I cannot guarantee the accuracy or completeness of this answer, and you should verify it with the NetApp Support Engineer ONTAP Specialist documents and learning resources.

Here are some references that might help you:

1: qos statistics volume latency show - NetApp 2: How to use and understand qos statistics commands to monitor volume latency in real time - NetApp Knowledge Base

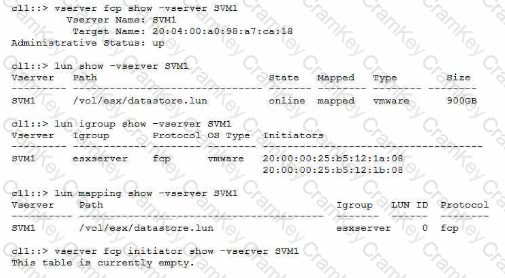

To access a LUN on a FAS 8300 system from a VMware ESXi server through the FC protocol, the customer must configure the FC service on the SVM that owns the LUN. The FC service enables the SVM to act as an FC target and communicate with the FC initiators on the host. Without the FC service, the LUN will not be visible to the host, even if the LUN is mapped to an igroup and the FC LIFs are up. The exhibit shows that the FC service is not configured on the SVM, as theoutput of the command vserver fcp initiator show -vserver SVM1 is empty. Therefore, the reason for the problem is that the FC service has not been configured on the SVM. References = Configure an SVM for FC, Create an FC protocol service, Single IQN iSCSI session with ESXi on ONTAP when igroup has two IQNs

FabricPool is an ONTAP feature that enables tiering of cold data from SSD aggregates to low-cost object storage, either on-premises or in the cloud1. FabricPool requires a license to be installed on the cluster, and the license type depends on the cloud tier being used2. In this scenario, the cloud tier is another ONTAP cluster (FAS8300), which is not supported by the new Cloud Tiering license that is used for most FabricPool configurations3. Therefore, the old FabricPool license that is retained for dark sites or MetroCluster systems using FabricPool Mirror must be used3. The FabricPool license defines the amount of capacity that can be tiered to the cloud tier, and it can be increased by add-on orders4. References:

• 1: FabricPool overview5
• 2: FabricPool requirements6
• 3: Install a FabricPool license2
• 4: ONTAP FabricPool (FP) Licensing Overview1
